Description

Description:

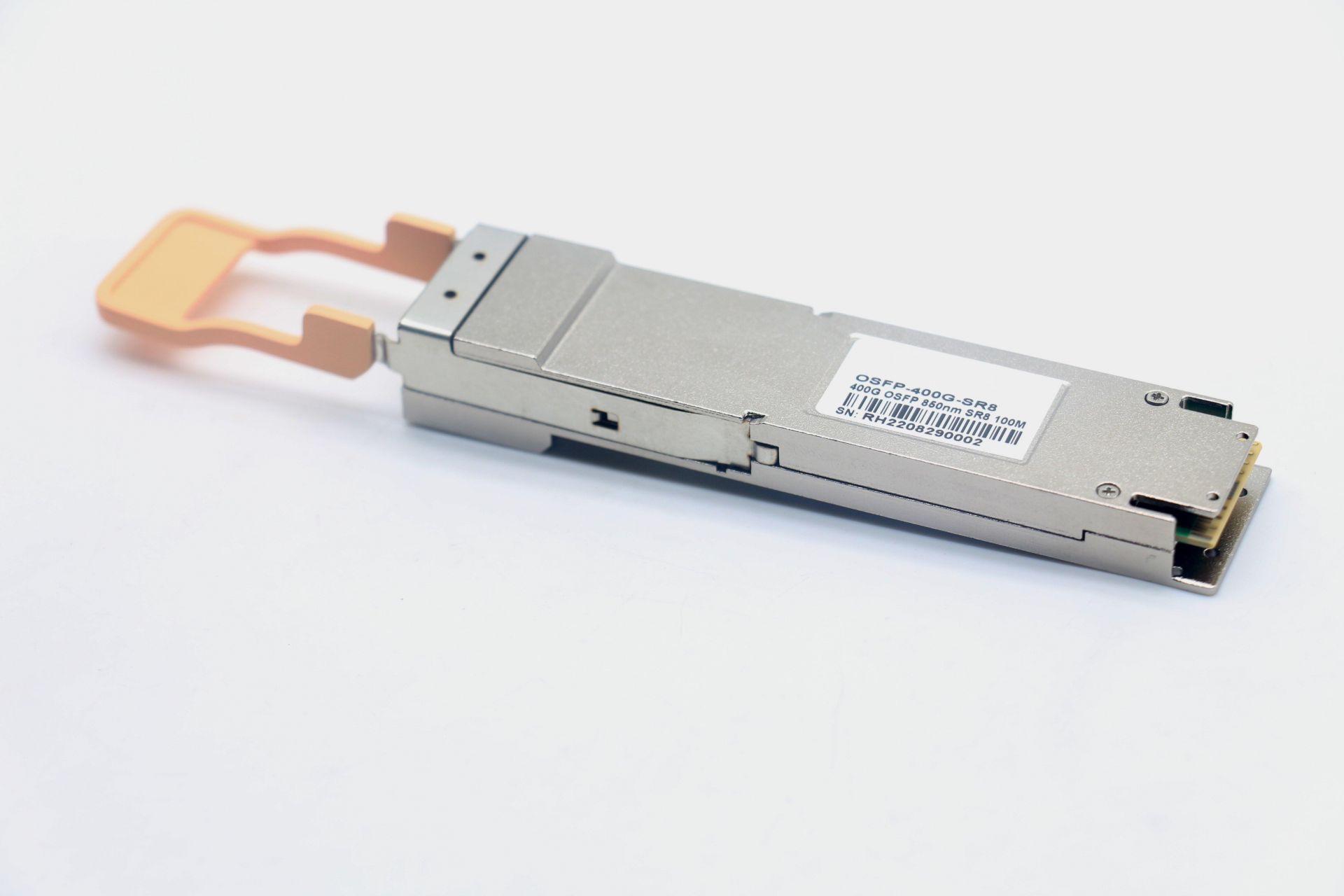

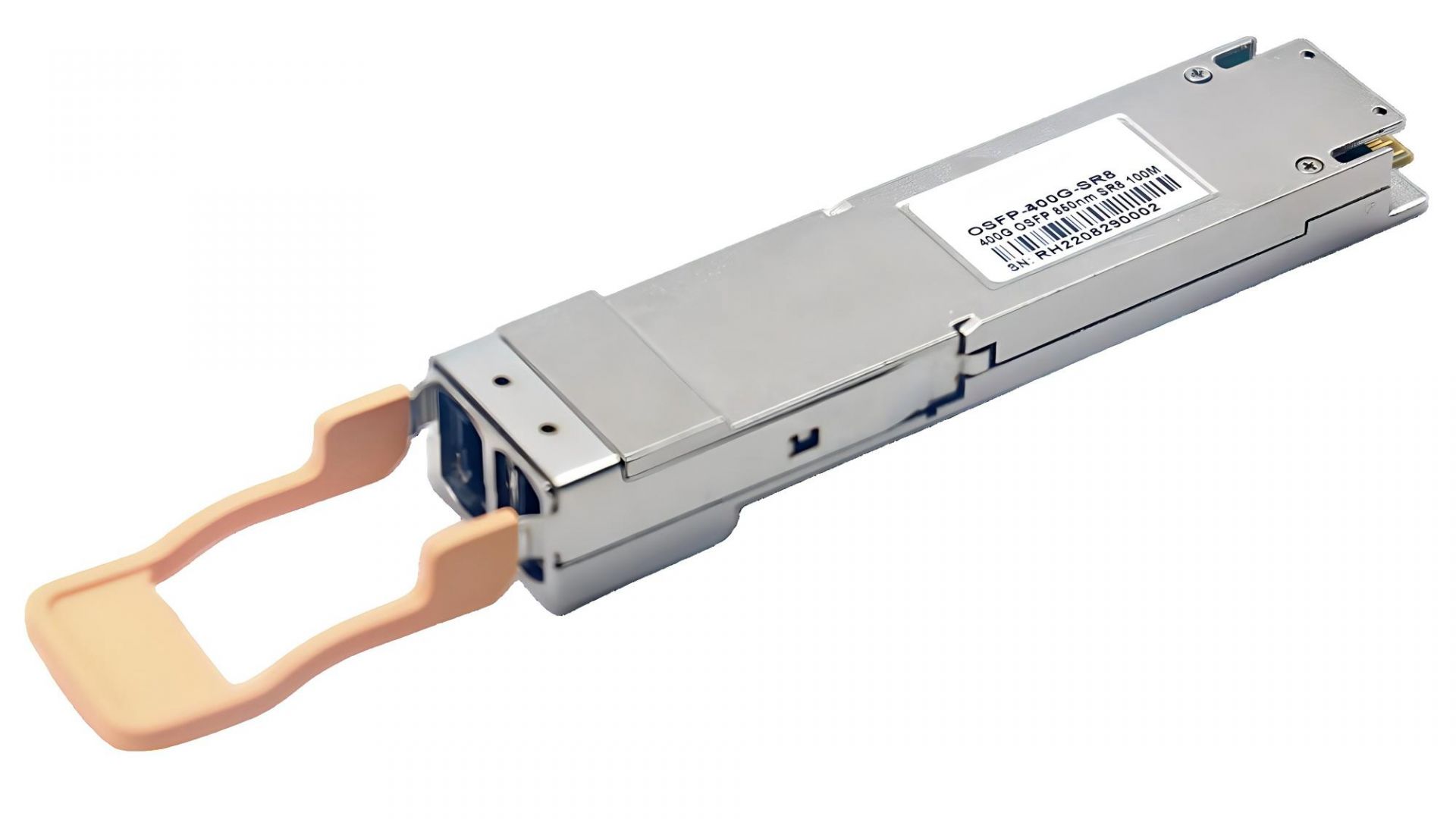

The 400G OSFP High-Speed Optical Transceiver is a hot-pluggable, next-generation module engineered for ultra-high-performance data centers, AI applications, and cloud-scale networks. Utilizing PAM4 modulation and a multi-lane architecture, it delivers 400 Gb/s aggregate bandwidth with low latency, high reliability, and energy-efficient operation. Compliant with OSFP MSA, CMIS, and IEEE 802.3 standards, it provides seamless integration into modern network infrastructures. With flexible reach options, from short-range to long-distance links, this module is ideal for high-density, high-speed networking where performance and reliability are critical.

Features:

• Form Factor: OSFP (Octal Small Form-Factor Pluggable), hot-pluggable
• Data Rate: 106.25 Gb/s per lane, 400 Gb/s aggregate
• Modulation: PAM4 for high-speed, efficient transmission
• Lane Count: 4 lanes × 106.25 Gb/s
• Distance Options: SR (100m), DR (500 m–2 km), FR/LR (2–10 km)
• Compliance: OSFP MSA, CMIS, IEEE 802.3
• Applications: AI data centers, cloud computing, high-performance networking
• Power Efficiency: Optimized low-power design for sustainable operation
• Monitoring: Integrated Digital Diagnostics Monitoring (DDM/DOM) for real-time performance

Specs:
