Description

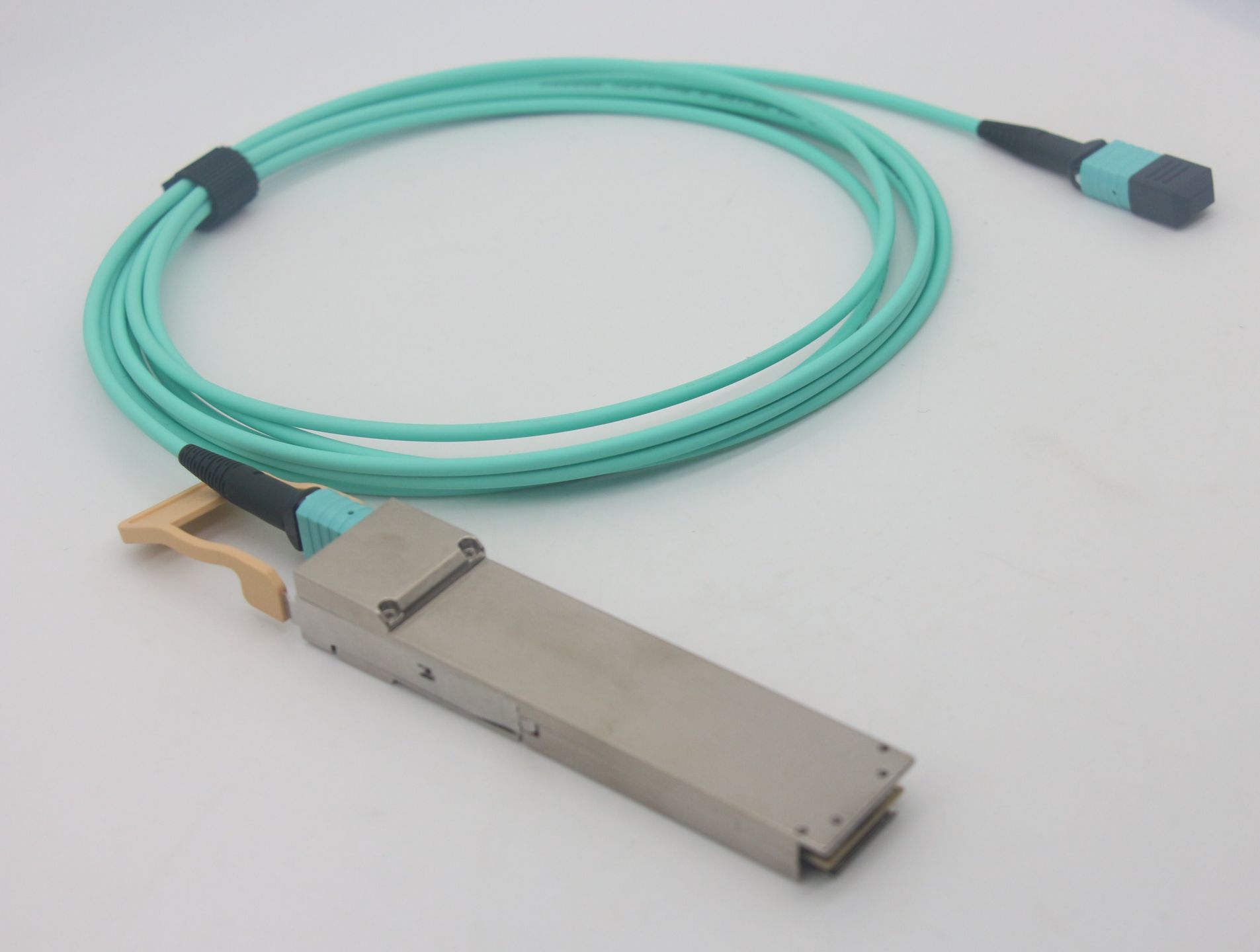

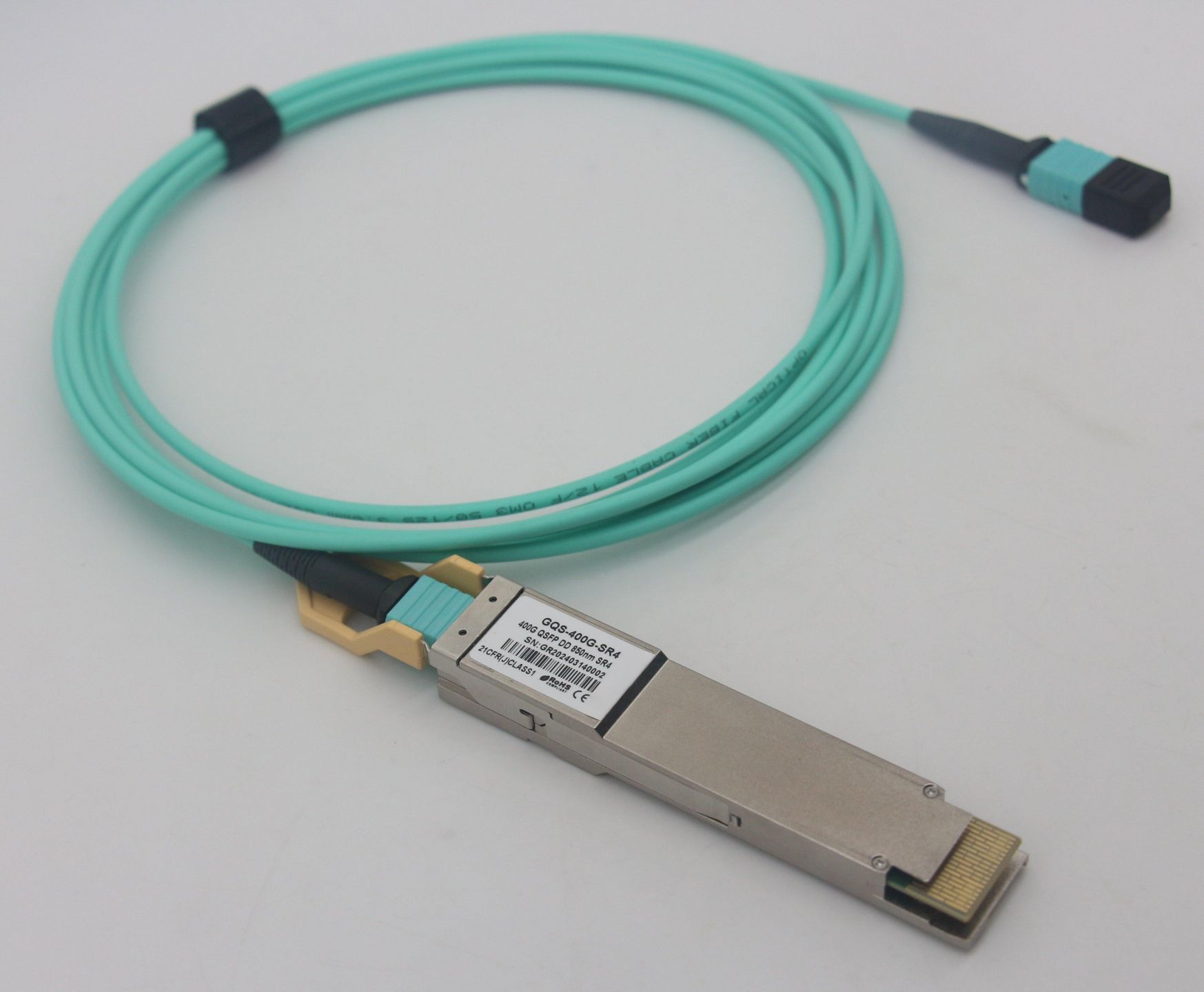

400G Liquid-Cooled AOC – QSFP112 / OSFP-DD / OSFP
Experience next-level data center speed with our 400G liquid-cooled active optical cable. Ultra-high bandwidth, low latency, and advanced thermal management in a hot-pluggable design—perfect for AI, HPC, and high-density networks.
Features:
- Data Rate: 400G per link, supporting high-speed QSFP112, OSFP-DD, and OSFP interconnects
- Form Factor Compatibility: QSFP112, OSFP-DD, OSFP for flexible deployment across modern network platforms
- Cooling Technology: Advanced liquid-cooled design for superior thermal management and stable operation
- Transmission Distance: support 60-100m reach data center applications
- High Signal Integrity: Low jitter, low insertion loss, and high-performance optical signal transmission
- Plug-and-Play: Hot-pluggable modules for easy installation and maintenance
- Energy Efficiency: Reduced power consumption compared to traditional copper or passive solutions
- Durability: Rugged design with high reliability for continuous 24/7 operation in demanding environments
Specs:
| Model NO. | QSFP112-400G-SR4-YL | QSFPDD-400G-SR4-YL | OSFP-400G-SR4-YL |
| Data Rate | 400Gbps | 400Gbps | 400Gbps |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Max. Power Consumption | 8W | 9W | 8W |
| Wavelength | 850nm | 850nm | 850nm |
| Optical Connector | MPO-12/APC | MPO-12/APC | MPO-12/APC |
| Receiver Type | VCSEL+PIN | VCSEL+PIN | VCSEL+PIN |
| Commercial Temperature | 0 to 60°C | ||
| Reach | 60m @OM3
100m @OM4 |
60m @OM3
100m @OM4 |
60m @OM3
100m @OM4 |
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
