Description
Description:

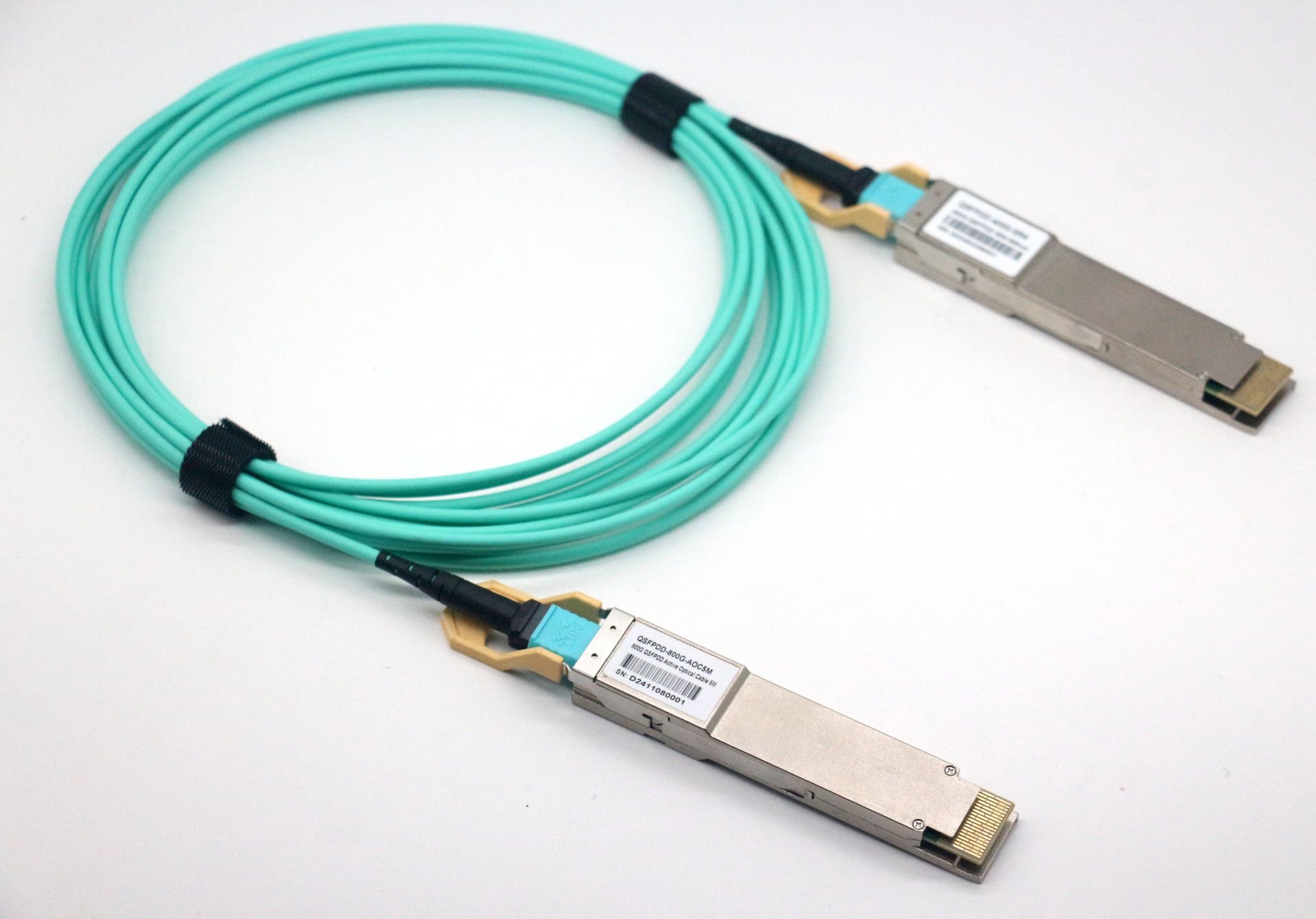

QSFP-DD AOC 800G Transceiver Modules –High-Speed Data Center Cable
Designed for next-generation data centers, this QSFP-DD Active Optical Cable (AOC) delivers ultra-high-speed 800G connectivity with low latency and minimal signal loss. Lightweight and EMI-resistant, it ensures reliable, long-distance transmission while supporting high-density server and switch interconnects. Ideal for high-performance networking environments demanding speed, efficiency, and stability.
Features:
- Hot-pluggable QSFP-DD transceiver modules for easy installation and maintenance
- 8-channel full-duplex active optical cable supporting high-speed data transmission
- Up to 106.25 Gbps per channel for ultra-high-performance networking
- Fully compliant with QSFP-DD MSA, CMIS, and IEEE 802.3 standards
- Low power consumption, maximum 14 W
- Designed for commercial operating temperature range
- 850 nm VCSEL laser paired with PIN photodetector for reliable optical performance
- Built-in digital diagnostic monitoring for real-time performance insights
- RoHS-compliant and environmentally friendly (lead-free)
Specs:
| Model NO. | QSFPDD-800G-AOCxxM | QSFPDD-2*400G-AOCxxM | QSFPDD-4*200G-AOCxxM |
| Data Rate | 800Gbps | 2*400Gbps | 4*200Gbps |
| Form Factor | QSFP-DD to QSFP-DD | QSFP-DD to 2QSFP112 | QSFP-DD to 4QSFP112 |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Max. Power Consumption | 14W | 14W | 14W |
| Wavelength | 850nm | 850nm | 850nm |
| Receiver Type | VCSEL+PIN | VCSEL+PIN | VCSEL+PIN |
| Commercial Temperature | 0 to 70°C (32 to 158°F) | ||
| Reach | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 |
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
