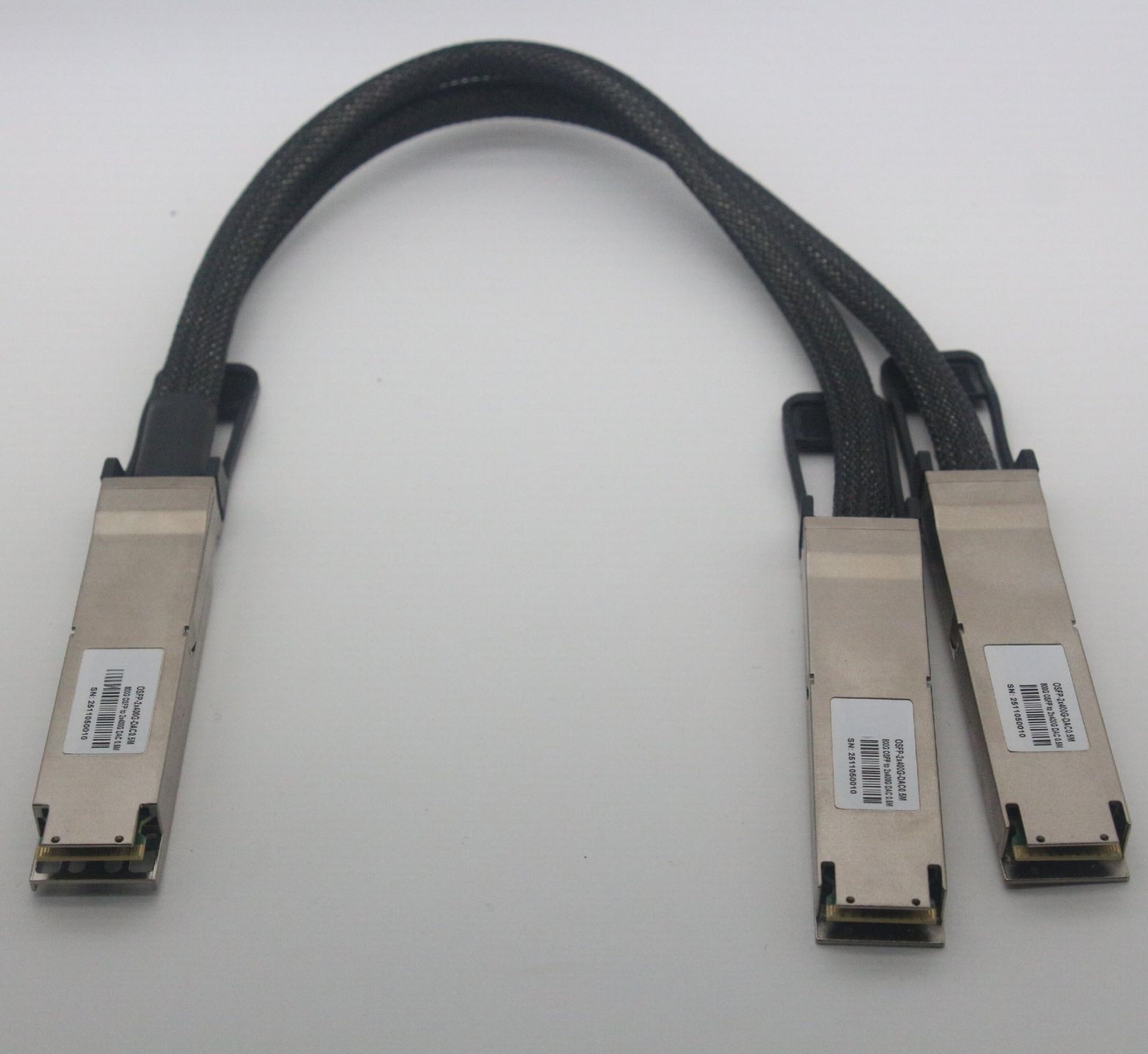

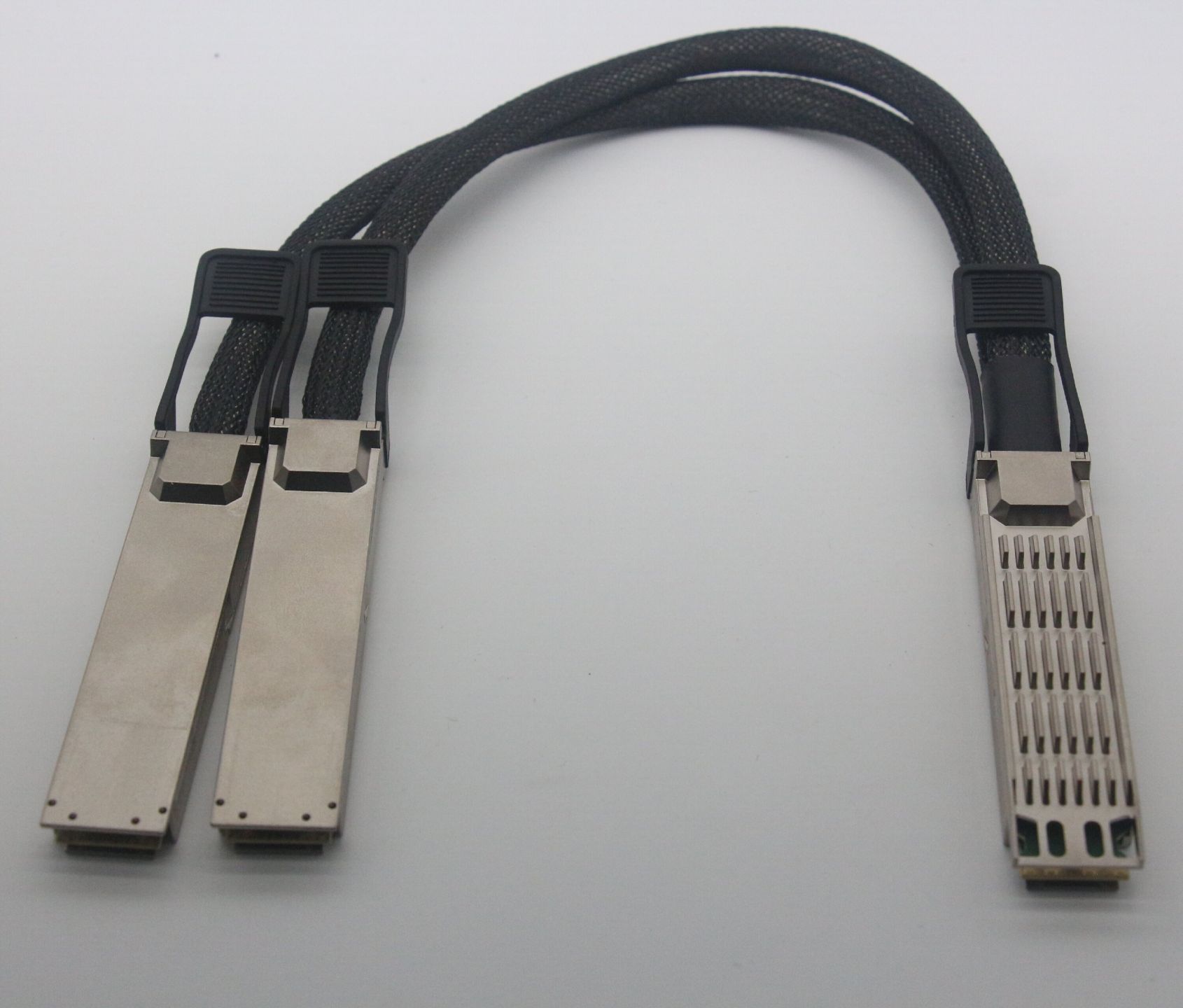

Description
Features:
- 8-Channel full duplex passive copper cable
- Data Rate 106.25 Gb/s PAM4 per lane
- Compliant with OSFP MSA, CMIS, and IEEE 802.3
- Support passive PCC, active ACC and active AEC
- LSZH’s cable outer layer material
- Management interface with I²C EEPROM
- Enhance EMI/EMC Performance
- Low-power consumption
- CE/ROHS/FCC compliant
Specs:
| Model NO. | OSFP800-2OSFP-CUxM | OSFP800-2OSFP-AECxM | OSFP800-2Q112-CUxM |
| From Factor | OSFP to 2OSFP | OSFP to 2OSFP | OSFP to 2QSFP112 |
| Data Rate | 2*400Gbps | 2*400Gbps | 2*400Gbps |
| Reach | 0.5~2M | 0.5~7M | 0.5~2M |
| AWG Cable | 30/26AWG | 32/30/26AWG | 32/30/28AWG |
| Max. Power Consumption | 0.1W | 10W | 0.1W |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Commercial Temperature | 0°C to 70°C | ||
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
