Description
Features:

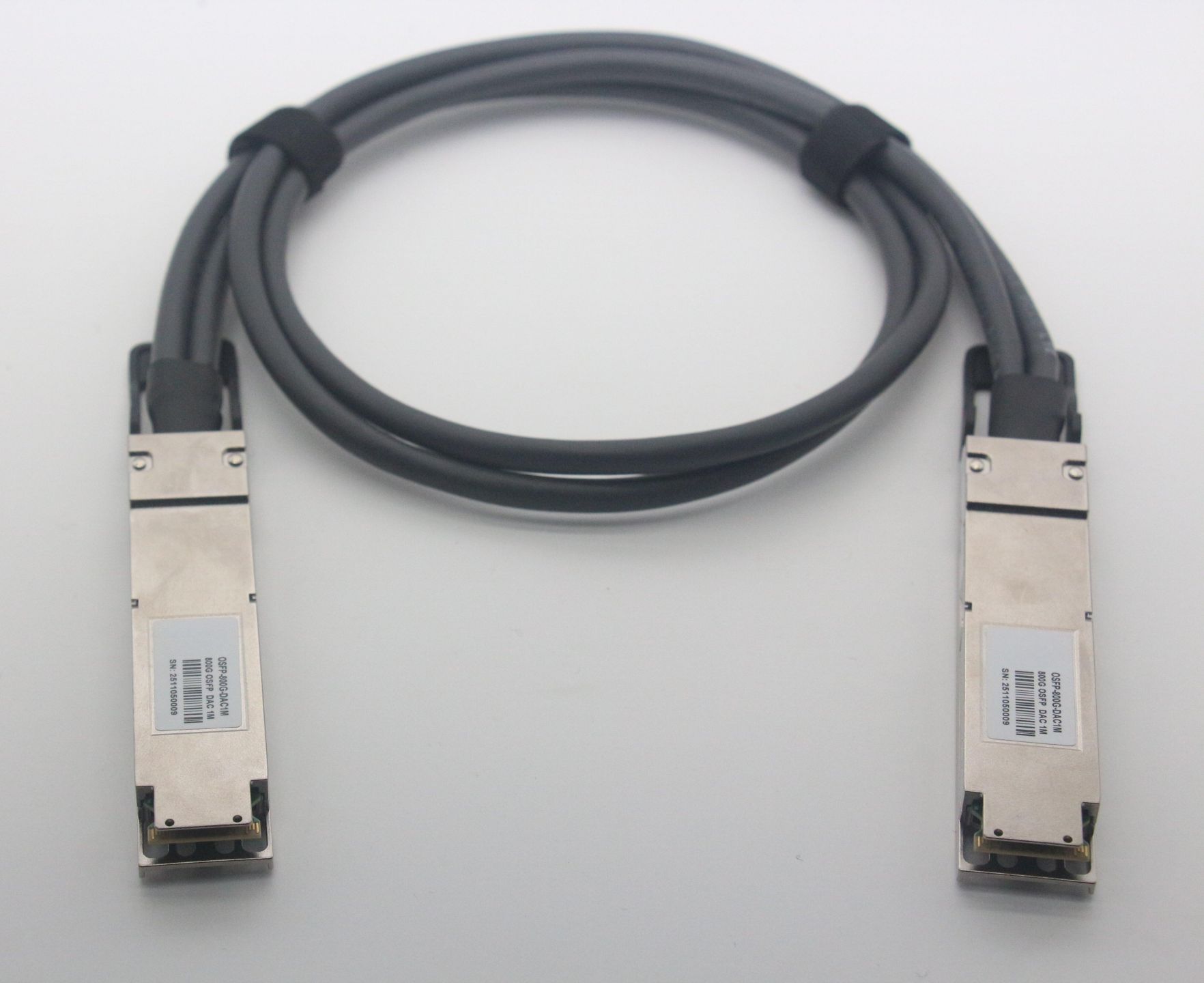

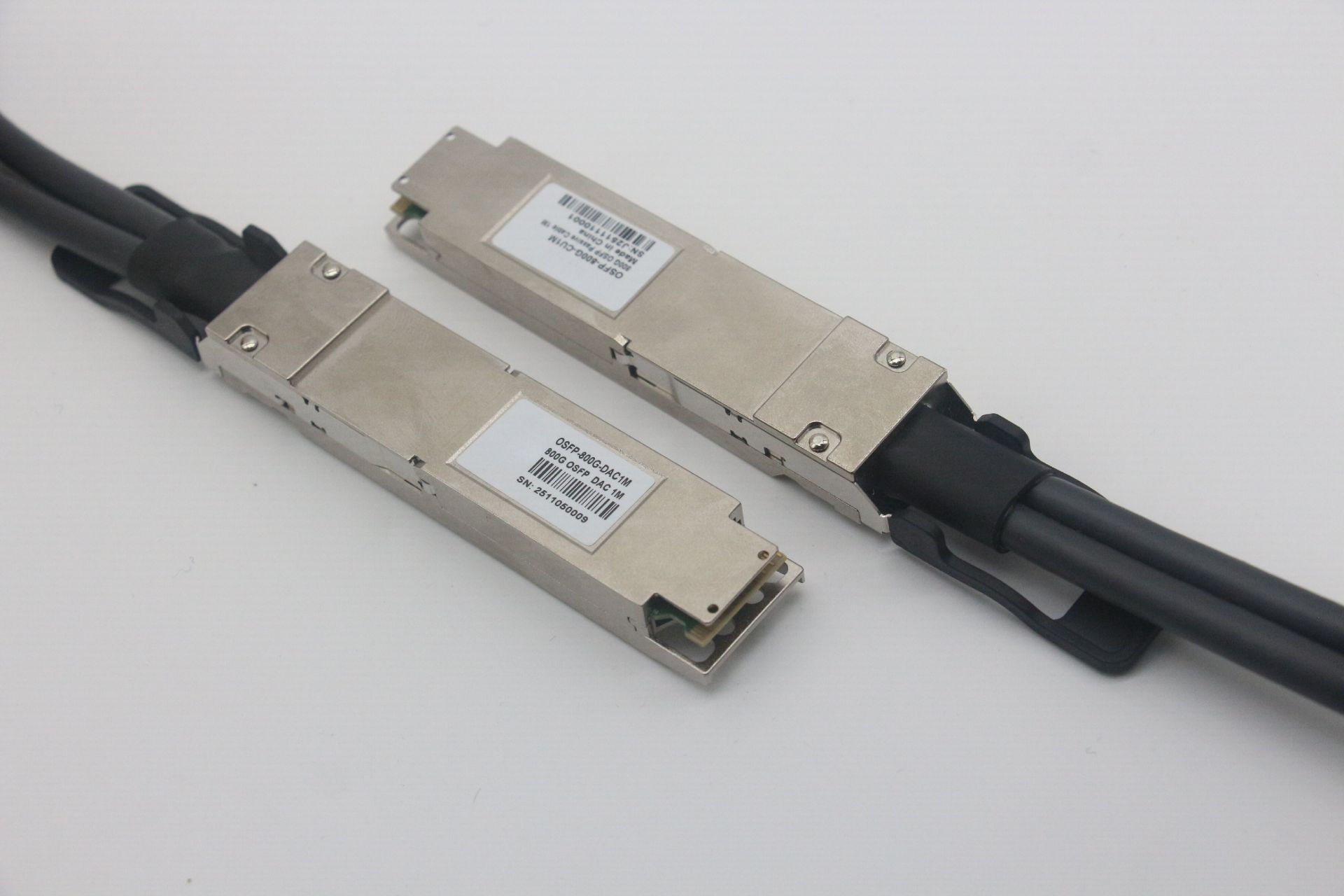

- 8-Channel Full-Duplex Passive Copper Cable: Reliable high-speed signal transmission across all channels
- High Data Rate: 106.25 Gb/s PAM4 per lane for ultra-fast connectivity
- Standards Compliant: Fully compatible with OSFP MSA, CMIS, and IEEE 802.3 specifications
- Flexible Cable Support: Works with Passive Copper Cable (PCC), Active Copper Cable (ACC), and Active Electrical Cable (AEC)
- Advanced Management: Integrated I²C EEPROM interface for easy monitoring and configuration
- Enhanced EMI/EMC Performance: Designed to minimize electromagnetic interference for stable operation
- Energy Efficient: Low-power consumption for reduced operational costs
- Regulatory Compliance: CE, RoHS, and FCC certified for global use
Specs:
| Model NO. | OSFP-800G-CUxM | OSFP-800G-ACCxM | OSFP-800G-AECxM |
| From Factor | OSFP to OSFP, QSFP-DD to QSFP-DD | ||
| Data Rate | 800Gbps | 800Gbps | 800Gbps |
| Reach | 0.5~2M | 0.5~5M | 0.5~7M |
| AWG Cable | 30/26AWG | 32/30/26AWG | 32/30/28AWG |
| Max. Power Consumption | 0.1W | 2.5W | 10W |
| Supply Vlotage | 3.3V | 3.3V | 3.3V |
| Commercial Temperature | 0°C to 70°C | ||
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
