Description

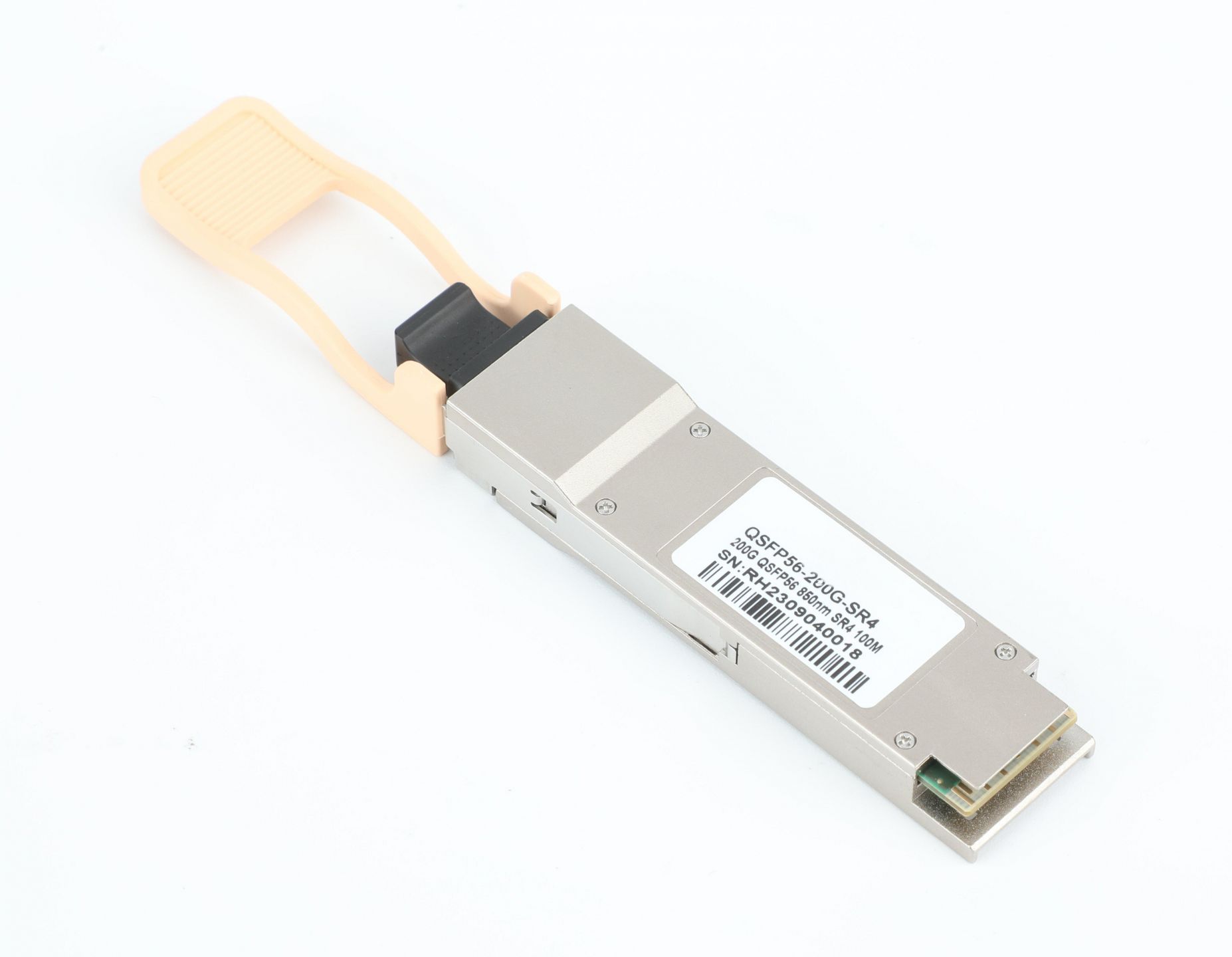

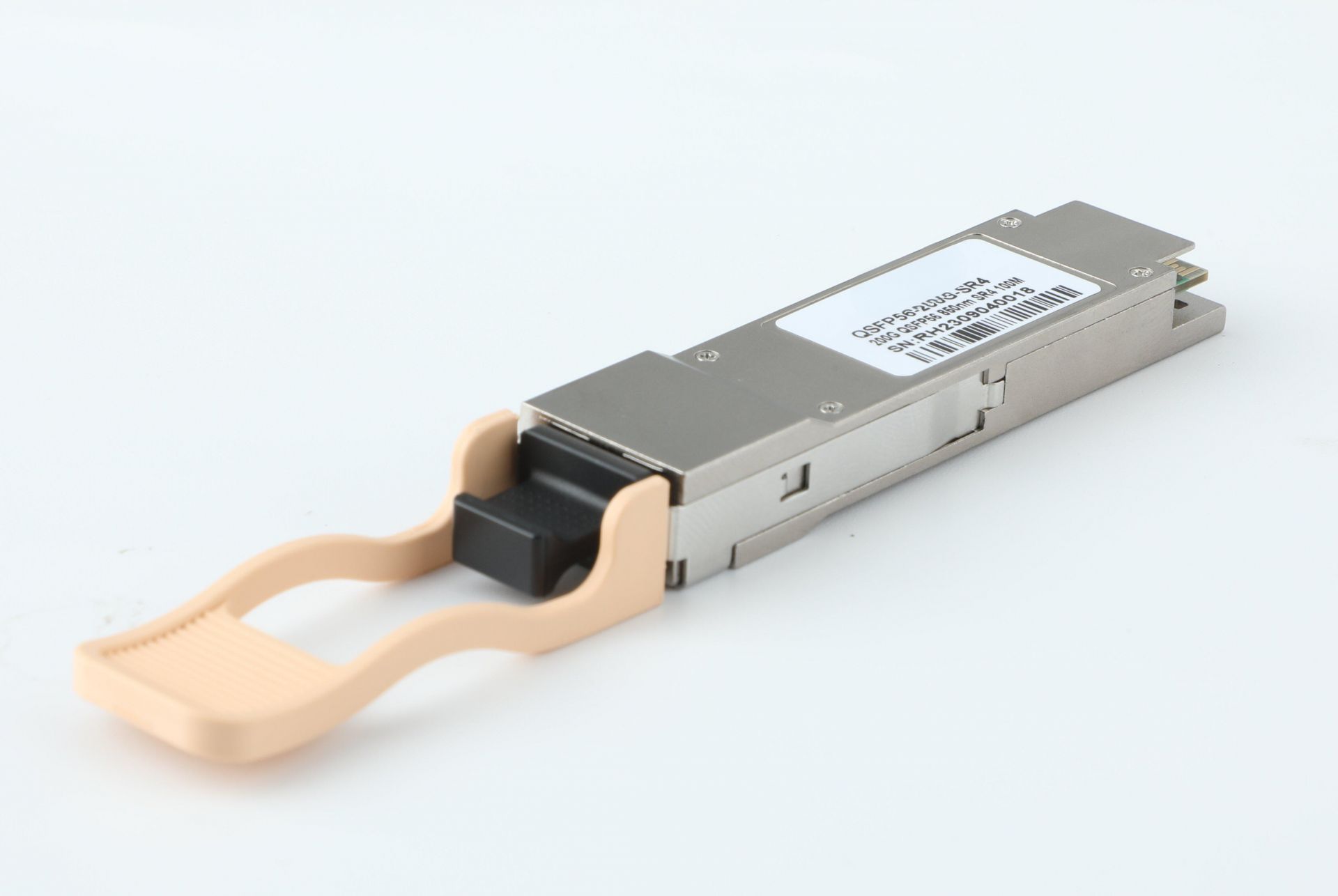

QSFP56 200G Ethernet Optical Transceiver Module
High-Speed 200G Connectivity | Breakout to 4×50G | Data Center Ready
Highlights:
- 200Gbps Ultra-Fast: Breaks out into 4×50G-SR for maximum flexibility
- Hot-Pluggable QSFP56: Easy installation and maintenance
- Optimized for MMF: Reliable short-reach up to 100m on OM4 fiber
- Low Latency & Power Efficient: Perfect for dense, high-performance networks
- Flexible Deployment: Compatible with QSFP56 switches and adapters
- Ideal For: Spine-leaf architectures, AI, HPC, and cloud data centers
Specs:
| Model NO. | QSFP56-200G-SR4 | QSFP56-200G-DR4 | QSFP56-200G-FR4 |
| Data Rate | 200Gbps | 200Gbps | 200Gbps |
| Input Vlotage | 3.3V | 3.3V | 3.3V |
| Max. Power Consumption | 5W | 5.6W | 6W |
| Wavelength | 850nm | 1310nm | 1310nm |
| Optical Connector | MPO-16/APC | MPO-12/APC | Duplex-LC |
| Receiver Type | VCSEL+PIN | DML+PIN | DML+PIN |
| Commercial Temperature | 0 to 70°C (32 to 158°F) | ||
| Reach | 60m @OM3
100m @OM4 |
500M | 2KM |
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
