Description:

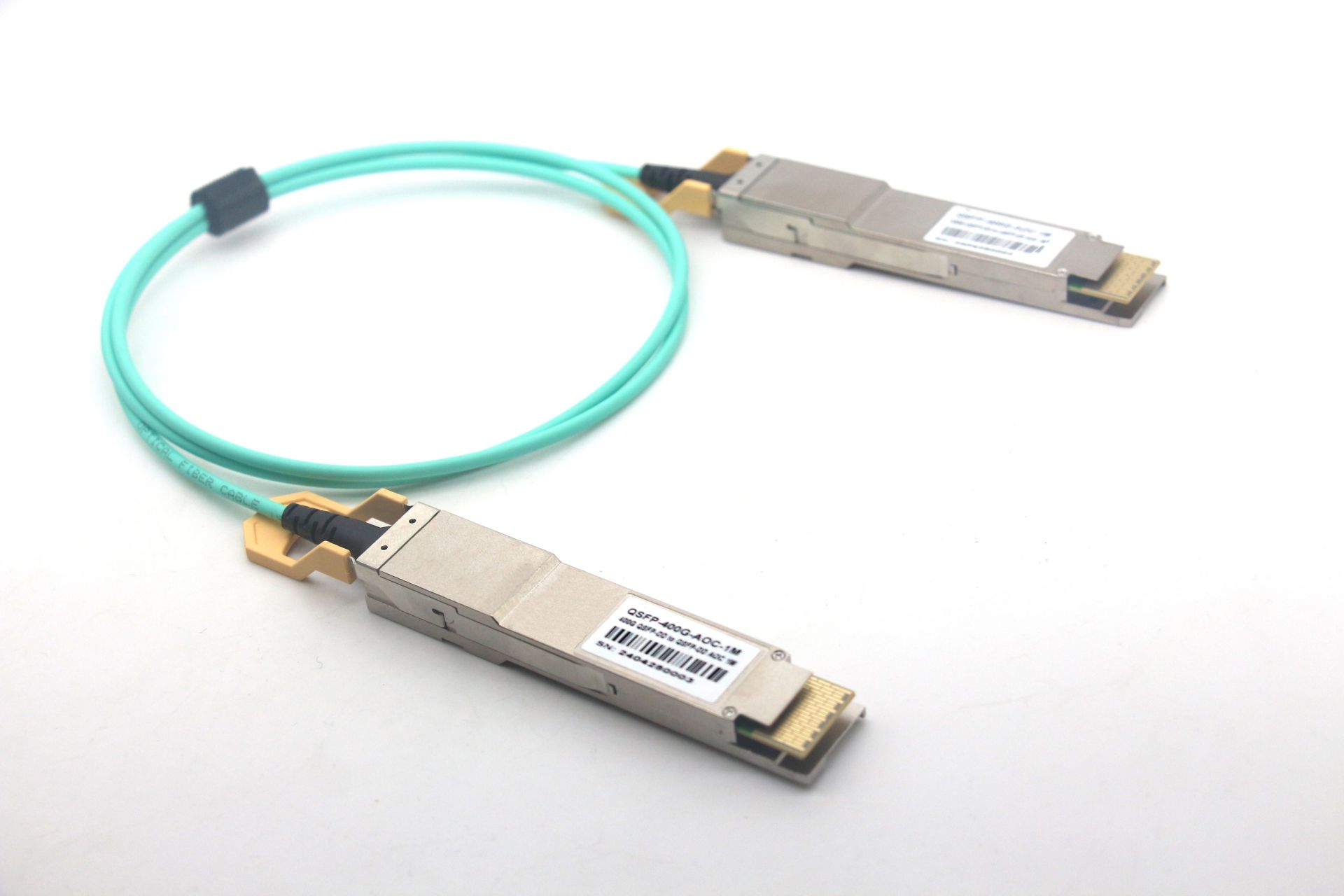

High-Performance OSFP AOC Transceiver Module
Designed for demanding data center and high-speed networking environments, this OSFP transceiver delivers exceptional performance, reliability, and flexibility. Supporting transmission rates up to 106.25 Gbps per channel, it features advanced VCSEL technology, hot-pluggable design, and built-in digital diagnostics for real-time monitoring. Its lightweight, airflow-friendly fiber design ensures easy deployment and superior thermal management, while OFNP-rated materials guarantee resistance to high temperatures and corrosion. Fully CMIS-compliant and RoHS-certified, it’s the ideal choice for next-generation networking infrastructure.
Features:
- Tested on targeted switches to ensure superior performance and reliability
- Hot-pluggable QSFP transceiver modules, fully compliant with CMIS standards
- Advanced reliability with VCSEL technology, no MPO connectors, and ultra-low BER
- Supports transmission rates up to 106.25 Gbps per channel
- Thin, lightweight fiber design with high airflow for flexible routing
- OFNP-rated: resistant to high temperatures and corrosion
- Built-in digital diagnostic monitoring for real-time performance insights
- RoHS-compliant and environmentally friendly (lead-free)
Specs:
| Model NO. | OSFP-400G-AOCxxM | OSFP-2*200G-AOCxxM | OSFP400G-Q112-AOCxxM |
| Data Rate | 400Gbps | 2*200Gbps | 400Gbps |
| Form Factor | OSFP to OSFP | OSFP to 2QSFP56 | OSFP to QSFP112 |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Max. Power Consumption | 8W | 8W | 8W |
| Wavelength | 850nm | 850nm | 850nm |
| Receiver Type | VCSEL+PIN | VCSEL+PIN | VCSEL+PIN |
| Commercial Temperature | 0 to 70°C (32 to 158°F) | ||
| Reach | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 |
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
