Description
Description:

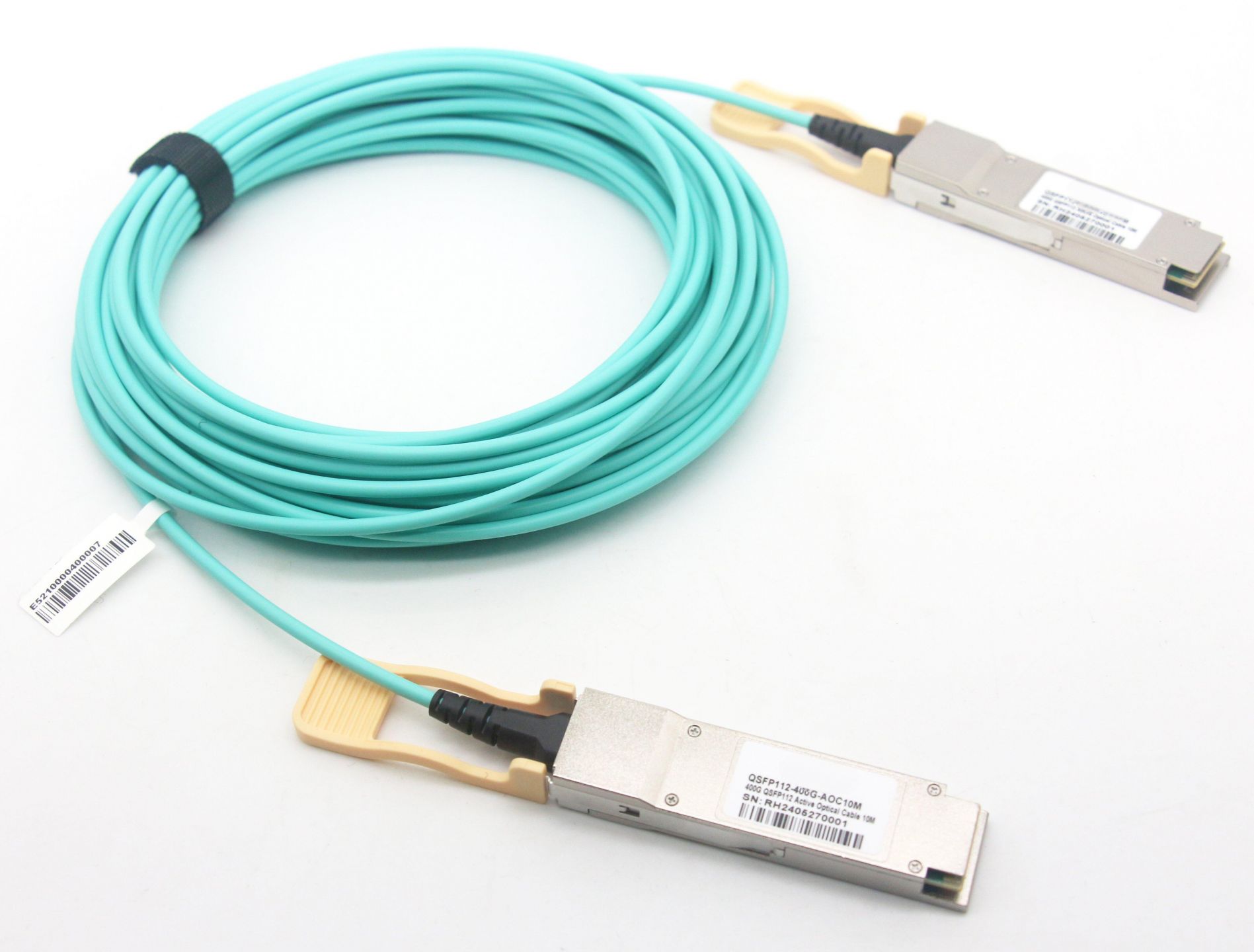

Active Optical Cables (AOC) combine lightweight design with high-performance data transmission. Resistant to electromagnetic interference, AOCs maintain superior throughput over longer distances compared to DAC cables. They support multiple Ethernet protocols and are fully compatible with InfiniBand NDR, ensuring reliable, high-speed connectivity for data centers and enterprise networks.
Features:
- Tested on targeted switches to ensure superior performance and reliability
- Hot-pluggable QSFP112 transceiver modules, fully compliant with CMIS standards
- Advanced reliability with VCSEL technology, no MPO connectors, and ultra-low BER
- Supports transmission rates up to 106.25 Gbps per channel
- Thin, lightweight fiber design with high airflow for flexible routing
- OFNP-rated: resistant to high temperatures and corrosion
- Built-in digital diagnostic monitoring for real-time performance insights
- RoHS-compliant and environmentally friendly (lead-free)
Specs:
| Model NO. | QSFP112-400G-AOCxxM | QSFP112-2*200G-AOCxxM | QSFP112-QDD-AOCxxM |
| Data Rate | 400Gbps | 2*200Gbps | 400Gbps |
| Form Factor | QSFP112 to QSFP112 | QSFP112 to 2QSFP112 | QSFP112 to QSFP-DD |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Max. Power Consumption | 8W | 8W | 8W |
| Wavelength | 850nm | 850nm | 850nm |
| Receiver Type | VCSEL+PIN | VCSEL+PIN | VCSEL+PIN |
| Commercial Temperature | 0 to 70°C (32 to 158°F) | ||
| Reach | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 |
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
