Description
Description:

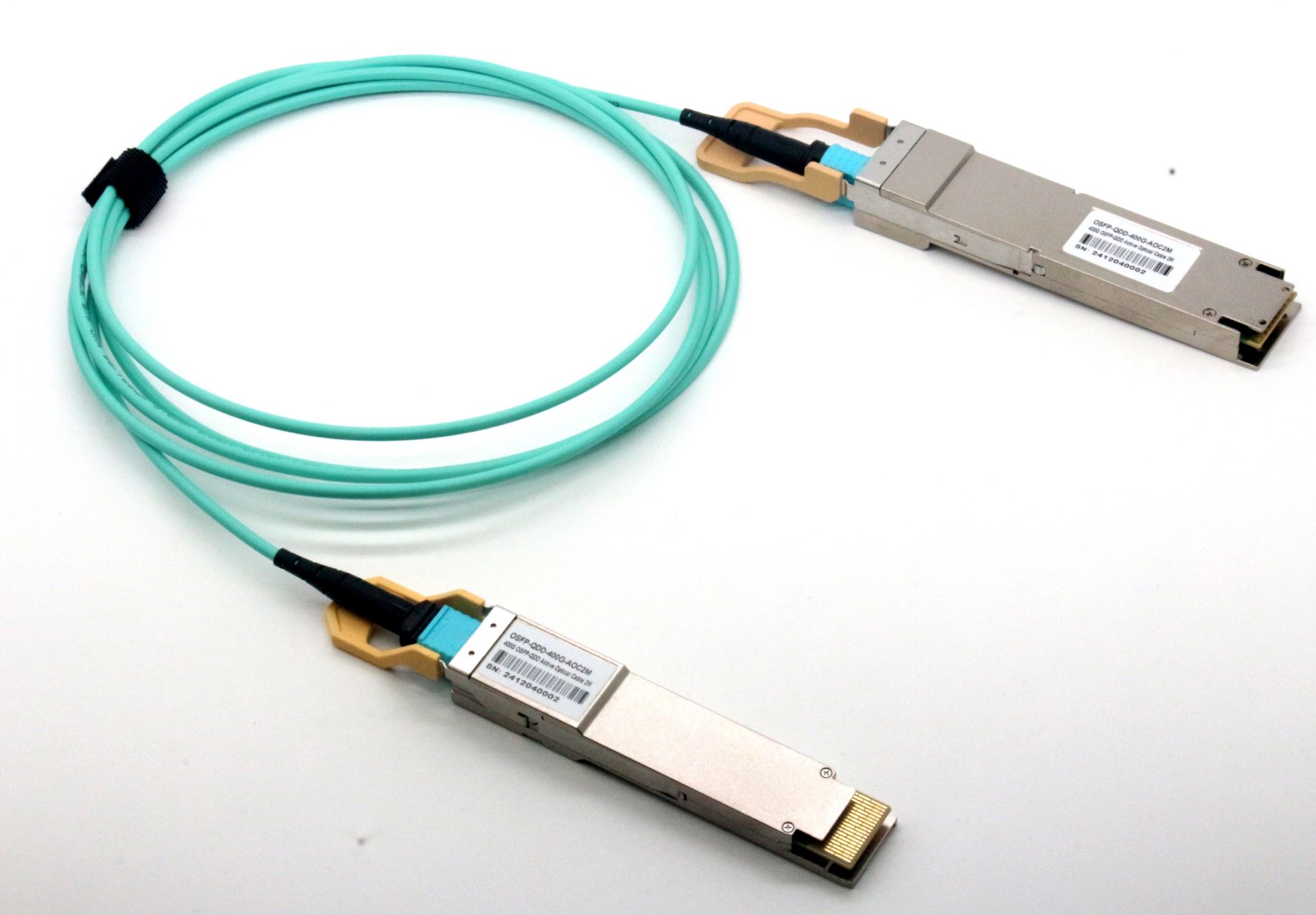

Designed for high-performance data centers, this QSFP-DD 400G Active Optical Cable (AOC) delivers ultra-low latency and high-throughput connectivity. Supporting 8 full-duplex channels at up to 106.25 Gbps per channel, it ensures reliable, long-distance server-to-switch interconnects. Hot-pluggable, QSFP-DD MSA, CMIS, and IEEE 802.3 compliant, with low power consumption and built-in digital diagnostics, this optical module provides efficient, high-speed networking with real-time performance monitoring, making it ideal for next-generation networking environments.
Features:
- Hot-Pluggable Design – Quick and easy installation with minimal downtime
- 8-Channel Full-Duplex – High-speed, low-latency data transmission
- Ultra-Fast 106.25 Gbps per Channel – Supports demanding data center workloads
- Standards Compliant – QSFP-DD MSA, CMIS, and IEEE 802.3 ready
- Energy Efficient – Low power consumption for optimized operation
- Reliable in Commercial Environments – Stable performance across standard temperature ranges
- Advanced Optical Performance – 850 nm VCSEL laser and PIN photodetector for superior signal integrity
- Real-Time Monitoring – Built-in digital diagnostics for instant performance insights
- Eco-Friendly – RoHS-compliant, lead-free materials
Specs:
| Model NO. | QSFPDD-400G-AOCxxM | QSFPDD-2*200G-AOCxxM | QSFPDD-4*100G-AOCxxM |
| Data Rate | 400Gbps | 2*200Gbps | 4*100Gbps |

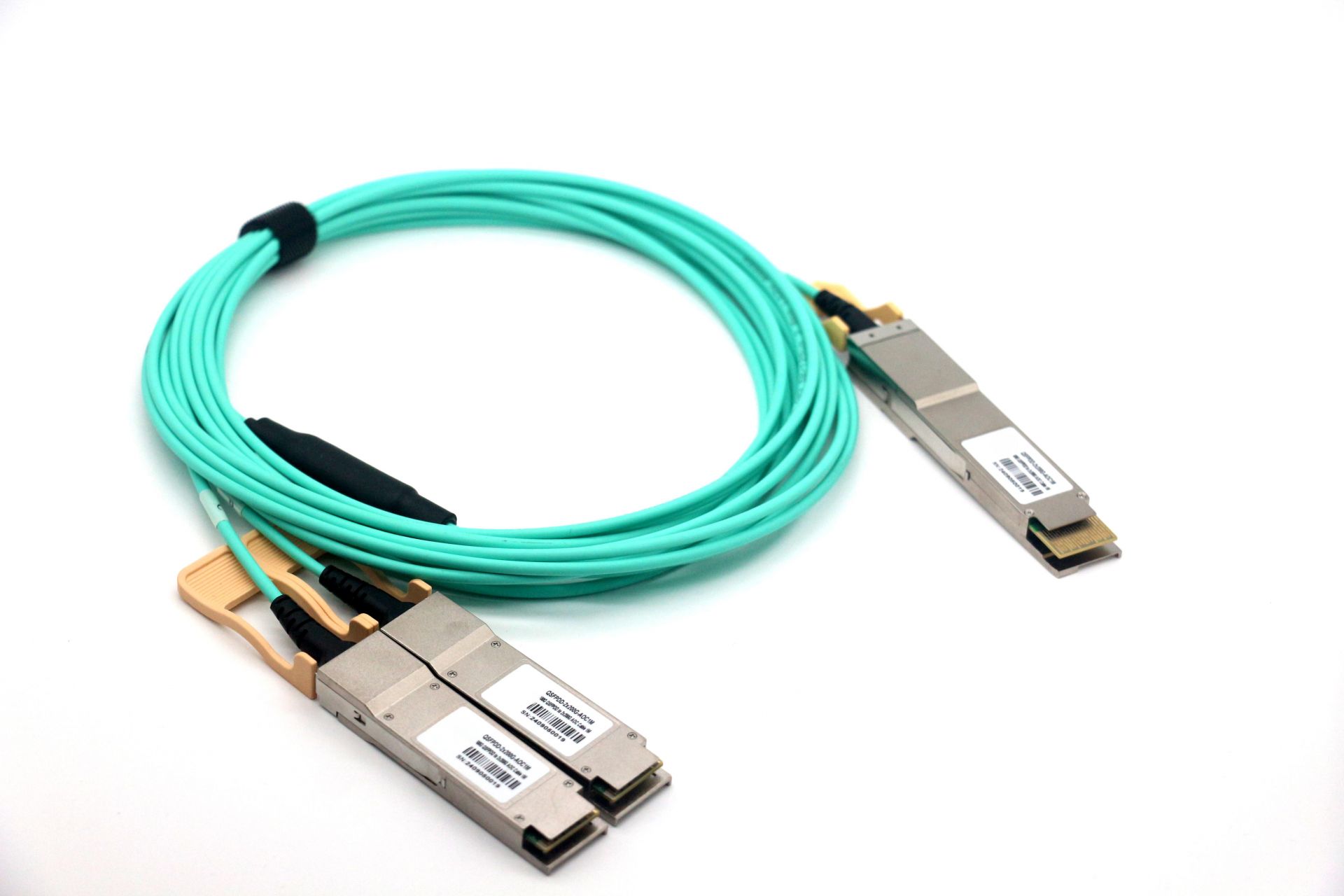

| Form Factor | QSFP-DD to QSFP-DD | QSFP-DD to 2QSFP56 | QSFP=DD to 4QSFP56 |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Max. Power Consumption | 9W | 9W | 9W |
| Wavelength | 850nm | 850nm | 850nm |
| Receiver Type | VCSEL+PIN | VCSEL+PIN | VCSEL+PIN |
| Commercial Temperature | 0 to 70°C (32 to 158°F) | ||
| Reach | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 | 30m@OM3 50m @OM4 |
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
