Description
Description:

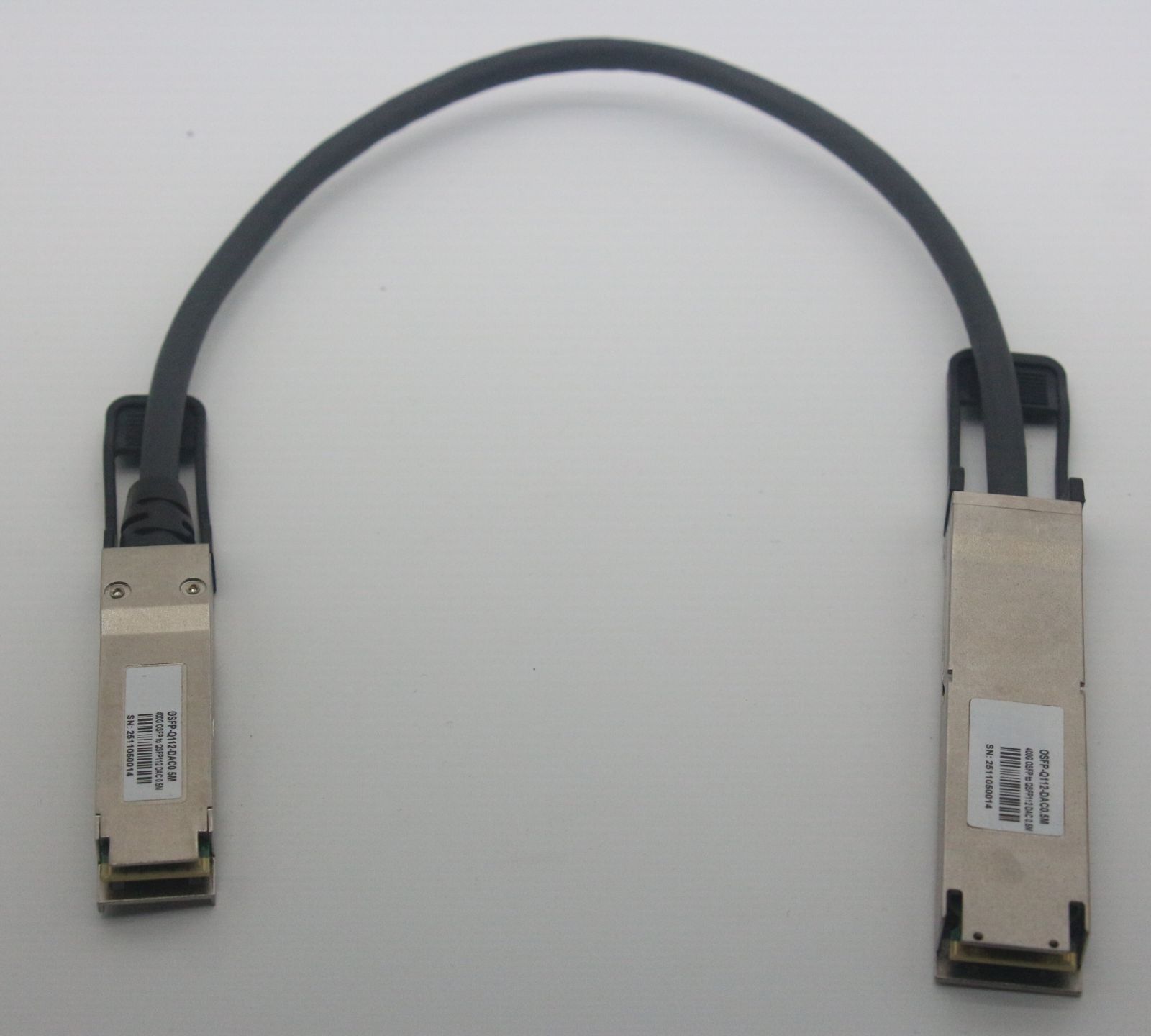

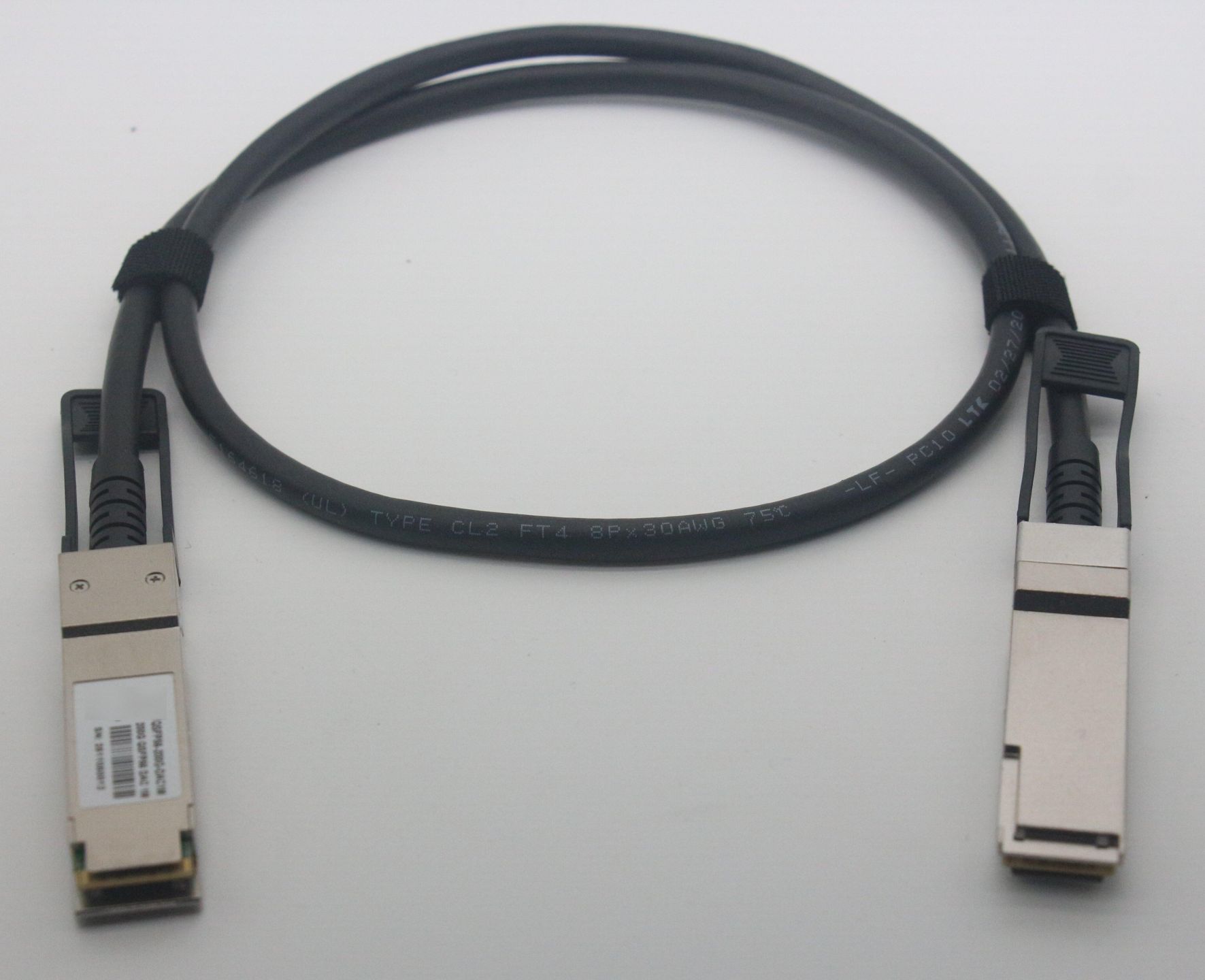

The QSFP112 400G DAC optical transceiver is a high-speed, low-latency solution designed for modern data centers and enterprise networks. Supporting 400Gbps full-duplex bandwidth, this direct attach copper (DAC) module delivers ultra-reliable, energy-efficient connectivity for short-reach server-to-switch and switch-to-switch applications. Its compact QSFP112 form factor enables high-density deployments, making it perfect for cloud computing, AI networking, and high-performance computing (HPC) environments. Optimize your network with the QSFP112 400G DAC for fast, secure, and scalable data transmission.
Features:
4-Channel full duplex passive copper cable
Data Rate 106.25 Gb/s PAM4 per lane
Compliant with OSFP MSA, CMIS, and IEEE 802.3
Low power consumption, Max. 0.1W
LSZH’s cable outer layer material
Management interface with I²C EEPROM
Enhance EMI/EMC Performance
CE/ROHS/FCC compliant
Specs:
| Model NO. | QSFP112-400G-CUxM | QSFP112-2QSFP-ACCxM | QSFP112-QSFPDD-CUxM |
| From Factor | QSFP112 to QSFP112 | QSFP112 to 2QSFP112 | QSFPDD to QSFP112 |
| Data Rate | 400Gbps | 2*200Gbps | 400Gbps |
| Reach | 0.5~3M | 0.5~3M | 0.5~3M |
| AWG Cable | 30/26AWG | 30/26AWG | 30/26AWG |
| Max. Power Consumption | 0.1W | 0.1W | 0.1W |
| Supply Vlotage | 3.3V | 3.3V | 3.3V |
| Commercial Temperature | 0°C to 70°C | ||
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
