Description
Features:

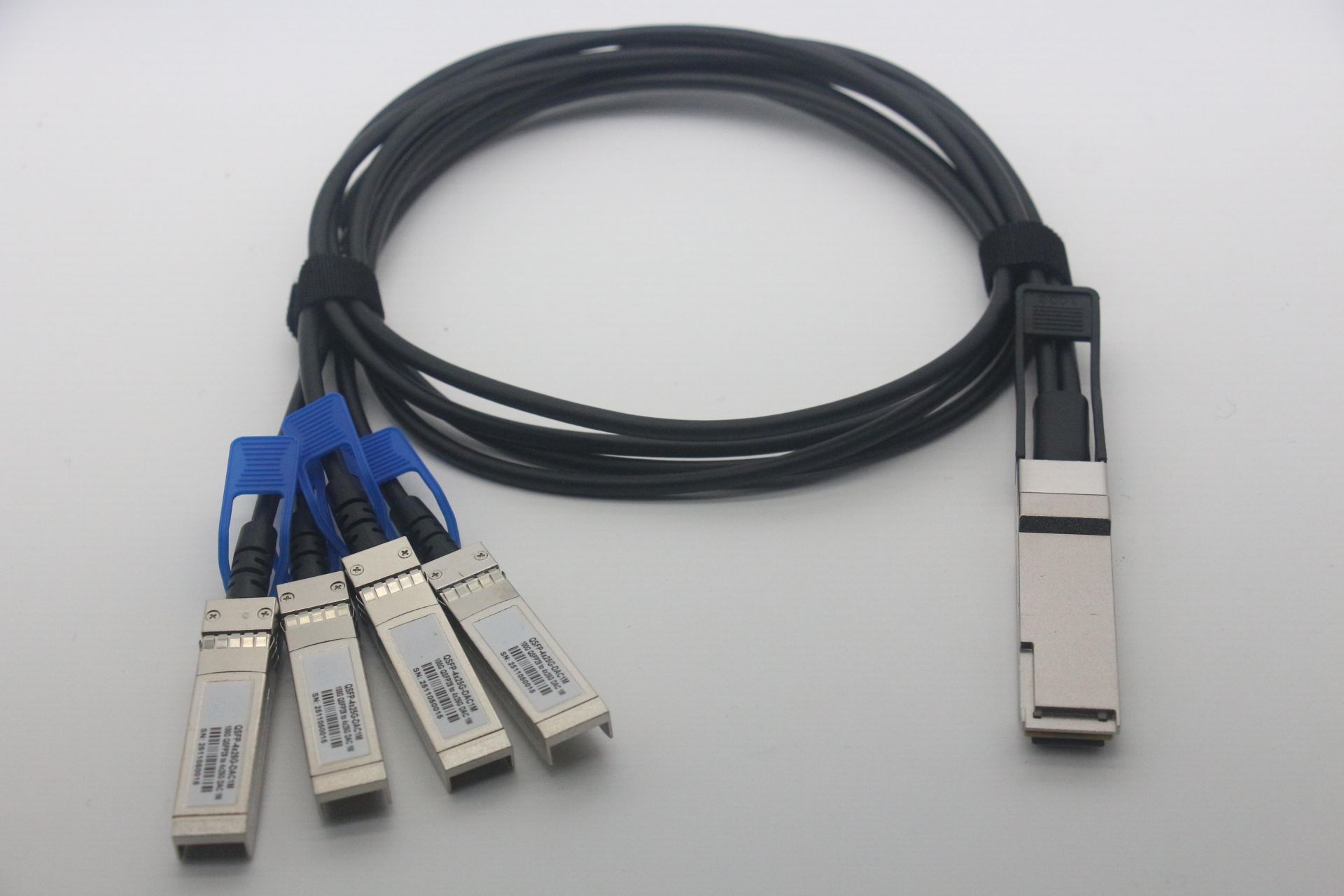

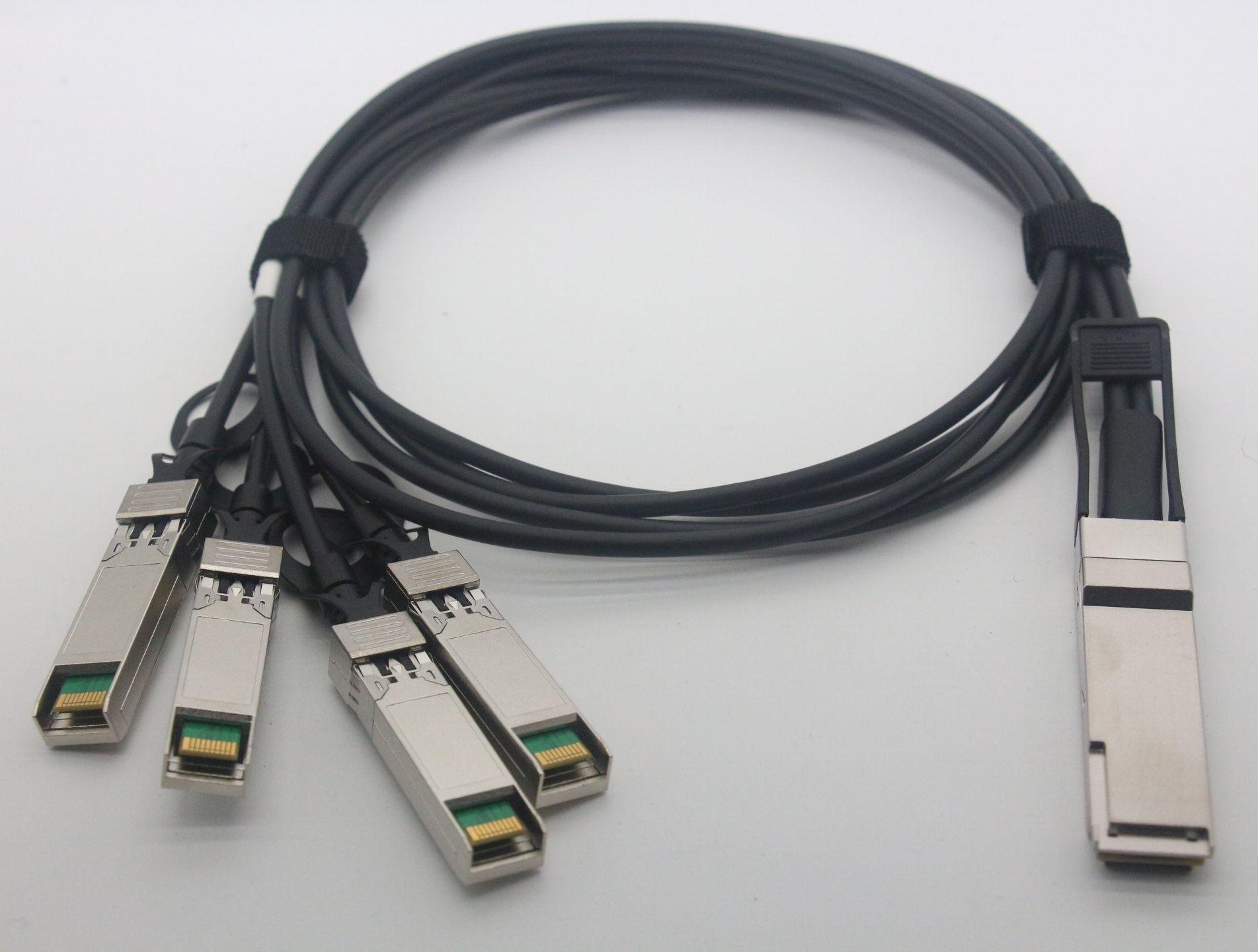

- 4-Channel full duplex passive copper cable
- Hot-pluggable QSFP/SFP from factor
- Compliant with SFF-8431, SFF-8632, SFF-8636, SFF-8665
- Low-power consumption, Max. 0.1W
- High standard LSZH’s cable outer layer material
- Management interface with I²C EEPROM
- Enhanced EMI/EMC Performance
- CE/ROHS/FCC compliant
Specs:
| Model NO. | QSFP-4*10G-CUxM | QSFP28-4*25G-CUxM | QSFP56-4*50G-CUxM |
| From Factor | QSFP+ to QSFP+ | QSFP28 to QSFP28 | QSFP56 to QSFP56 |
| Data Rate | 4*10Gbps | 4*25Gbps | 4*50Gbps |
| Reach | 0.5~7M | 0.5~5M | 0.5~3M |
| AWG Cable | 30/24AWG | 30/26AWG | 30/26AWG |
| Max. Power Consumption | 0.1W | 0.1W | 0.1W |
| Supply Vlotage | 3.3V | 3.3V | 3.3V |
| Commercial Temperature | 0°C to 70°C | ||
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
