Description
Features:

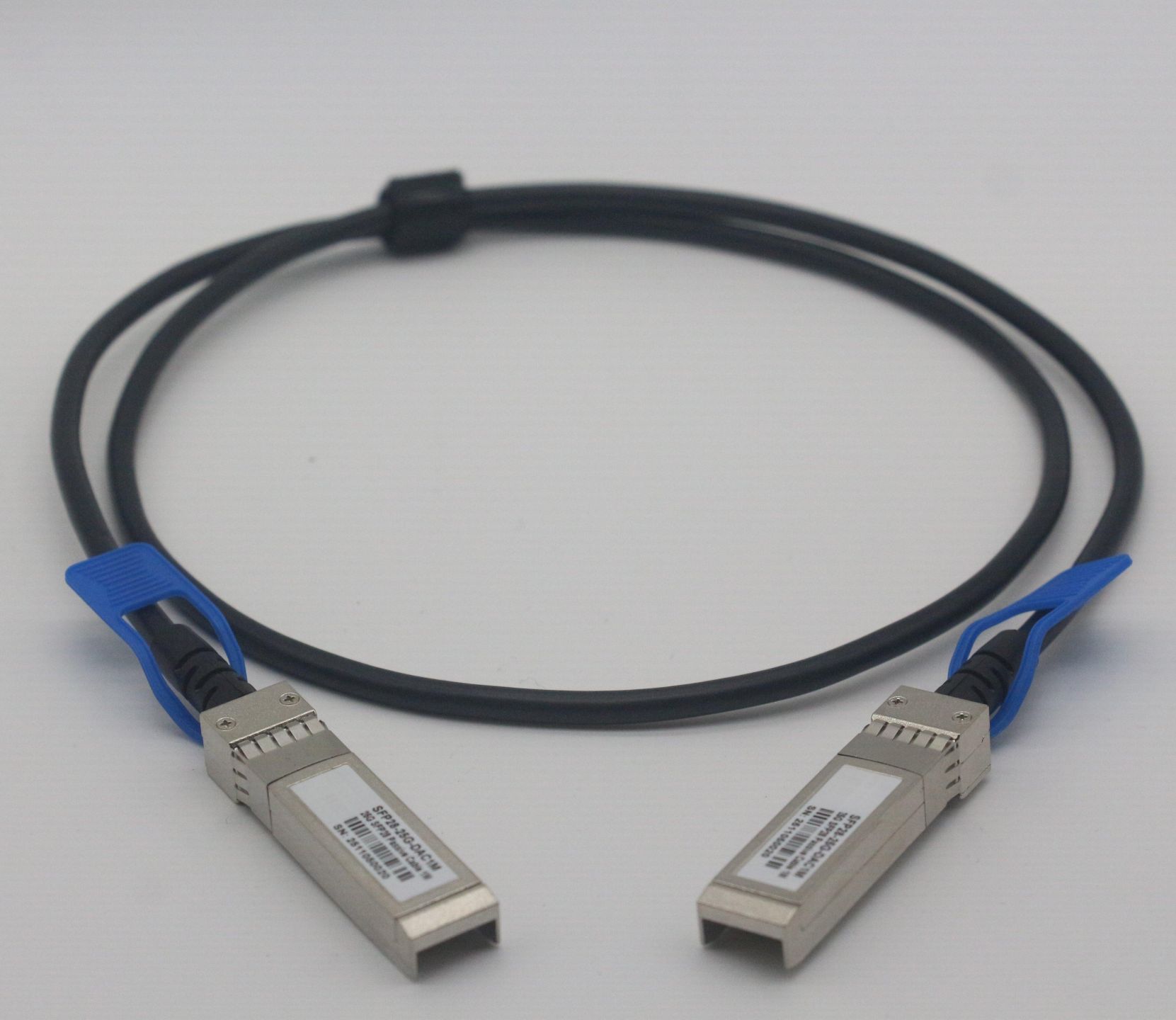

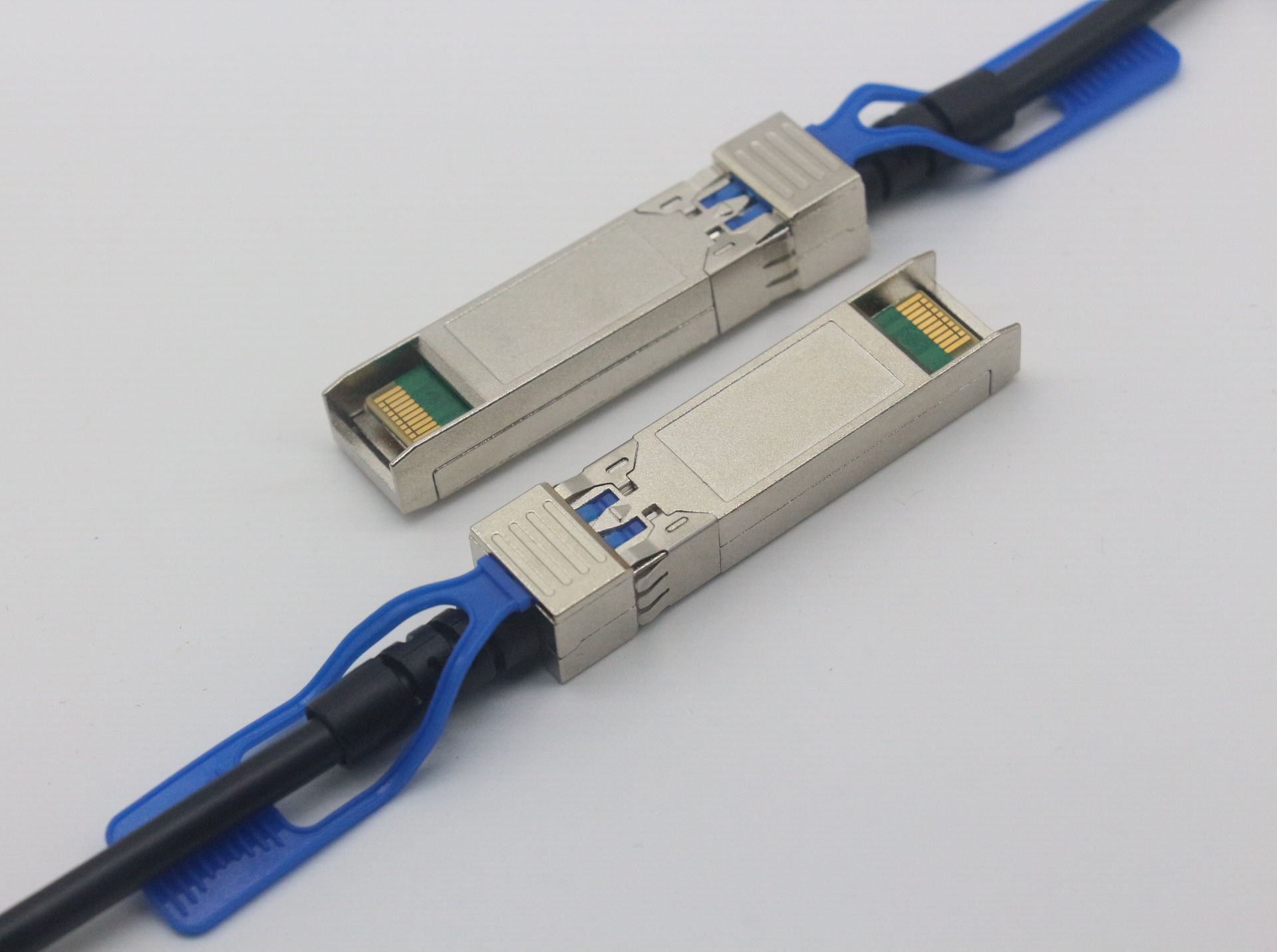

- Single Channel full duplex passive copper cable
- Hot-pluggable SFP+/SFP28/SFP56 from factor
- Compliant with SFF-8402, SFF-8431, SFF-8432
- Low-power consumption, Max. 0.1W
- High quality LSZH’s cable outer layer material
- Management interface with I²C EEPROM
- Enhanced EMI/EMC Performance
- CE/ROHS/FCC compliant
Specs:
| Model NO. | SFP-10G-CUxM | SFP28-25G-CUxM | SFP56-50G-CUxM |
| From Factor | SFP+ to SFP+ | SFP28 to SFP28 | SFP56 to SFP56 |
| Data Rate | 10Gbps | 25Gbps | 50Gbps |
| Reach | 0.5~7M | 0.5~5M | 0.5~3M |
| AWG Cable | 30/24AWG | 30/26AWG | 30/26AWG |
| Max. Power Consumption | 0.1W | 0.1W | 0.1W |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Commercial Temperature | 0°C to 70°C | ||
| Protocol | Ethernet, IEEE 802.3db, IEEE 802.3ck | ||
